Cavity speaker module, 28×6.2H mm, 8Ω 1W/1.5W, sensitivity 93±3 dB(0.1W/0.1M), F0 1600±20%Hz. Typical applications: EV Charger, Ceiling Speaker, Public Display. XDEC (Shenzhen, est. 2009) — OEM/ODM customization, 3-5 day lead time for standard parts, free selection and sampling.
Speaker driver module with built-in acoustic cavity, optimized bass performance, ready to use. Ideal for projectors, soundbars, smart TVs and devices requiring rear cavity. Professional manufacturing by Shenzhen XDEC with 18 years industry experience.
Keywords
cavity speaker driverbox speaker driverenclosure speaker driverenclosed speaker unitprojector speaker drivercabinet speaker
Applications
ProjectorsSoundbarsSmart TVsSmart LightingEV Chargers
Supply Information
MOQ
3000 pcs (Trial 500+)
Lead Time
15-30 days
Price Terms
FOB Shenzhen
Customization
OEM / ODM
Certifications & Strengths
ISO 9001:2015· Quality Management
IATF 16949· Automotive Quality
ISO 14001:2015· Environmental Management
TUV· TUV Certified
18 years speaker driver manufacturing experience, exported to 30+ countries, stable and reliable quality.
Category:Cavity Speaker Driver
Cavity Speaker Driver
XDEC Boxed Loudspeaker Driver diameter 28mm (1.10"), height 6.2mm (0.24)", 8Ω 1W/1.5W
XDEC-BOX28M08T20NH12-D60
Cavity speaker module, 28×6.2H mm, 8Ω 1W/1.5W, sensitivity 93±3 dB(0.1W/0.1M), F0 1600±20%Hz. Typical applications: EV Charger, Ceiling Speaker, Public Display. XDEC (Shenzhen, est. 2009) — OEM/ODM customization, 3-5 day lead time for standard parts, free selection and sampling.
Specifications
Impedance:8Ω
Power:1W/1.5W
Dimensions:28×6.2H mm

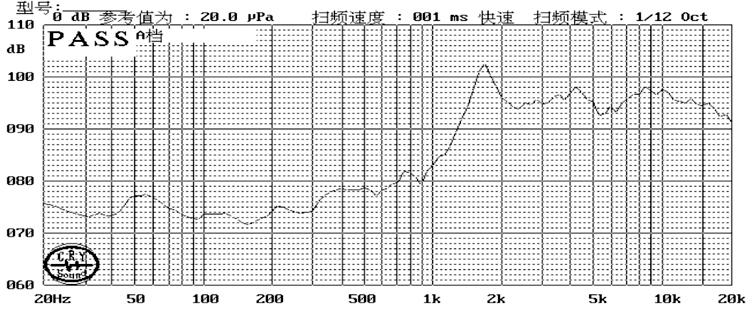

Frequency:F0~20K
Sensitivity:93±3 dB(0.1W/0.1M)
Distortion:5% Max
Get Datasheet & Quote
Contact
xd12@xdec.cn
0755-27739805
Manager Yuan 13528883307
Note: Datasheets are not available for direct download. Please submit an inquiry to receive them.
