Earphone speaker driver, 30×6.8H mm, 32Ω 20mW/30mW, sensitivity 118 ±3dB, F0 150Hz±20%. Typical applications: Hearing Aid Device, Studio Monitor Headphone, Wired Earphone. XDEC (Shenzhen, est. 2009) — OEM/ODM customization, 3-5 day lead time for standard parts, free selection and sampling.
High-fidelity headphone speaker driver unit (over-ear & helmet types, from 15mm) with wide frequency response, low distortion and high sensitivity. Designed for over-ear headphones, gaming headsets, helmet headsets and other personal audio devices. 18 years manufacturing experience, reliable quality.
Keywords
headphone speaker driverearphone driverheadphone speaker 40mm40mm headphone speakerdynamic driverminiature dynamic driver
Applications
Over-ear HeadphonesGaming HeadsetsHelmet HeadphonesHearing Aids
Supply Information
MOQ
3000 pcs (Trial 500+)
Lead Time
15-30 days
Price Terms
FOB Shenzhen
Customization
OEM / ODM
Certifications & Strengths
ISO 9001:2015· Quality Management
IATF 16949· Automotive Quality
ISO 14001:2015· Environmental Management
TUV· TUV Certified
18 years speaker driver manufacturing experience, exported to 30+ countries, stable and reliable quality.
Category:Headphone Speaker Driver
Headphone Speaker Driver

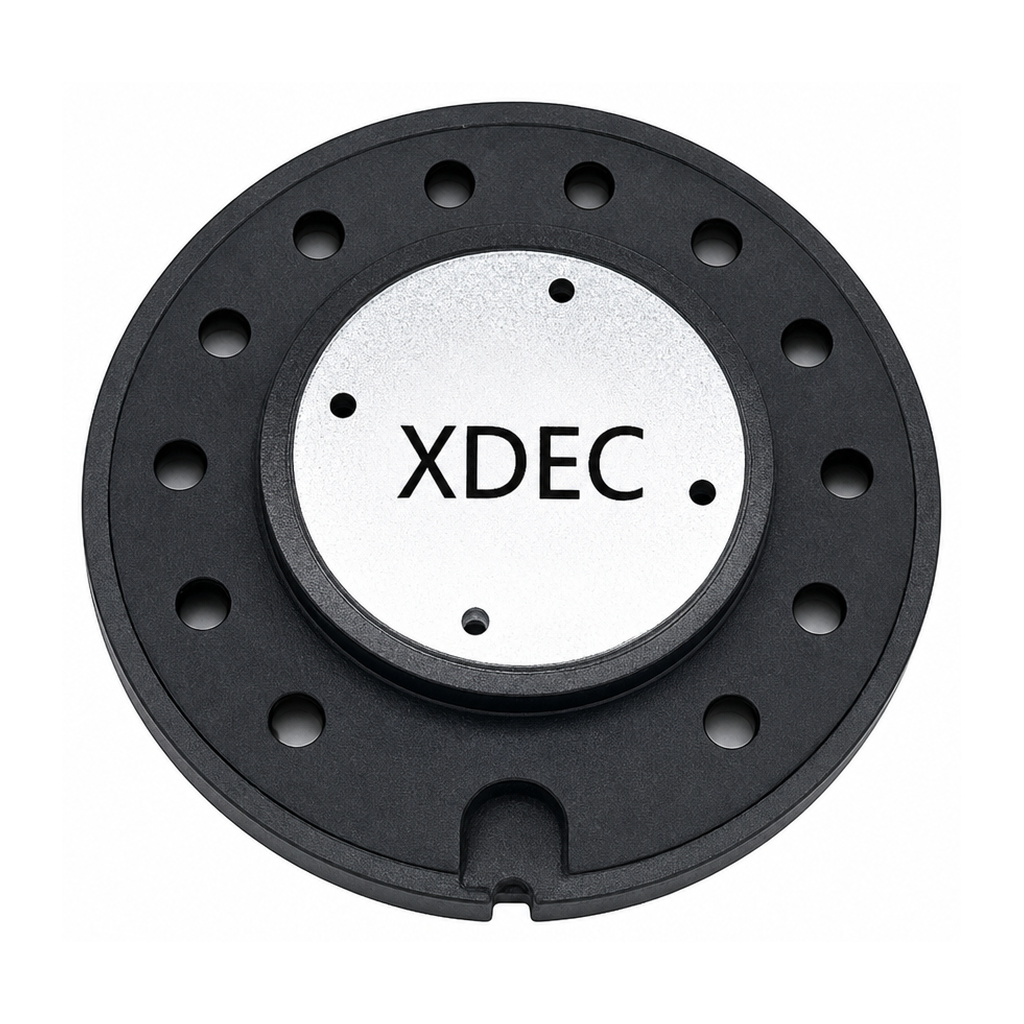

XDEC Headphone Speaker Unit diameter 30mm (1.18"), height 6.8mm (0.27)", 32Ω 20mW/30mW
XDEC-30E32J24NA02A
Earphone speaker driver, 30×6.8H mm, 32Ω 20mW/30mW, sensitivity 118 ±3dB, F0 150Hz±20%. Typical applications: Hearing Aid Device, Studio Monitor Headphone, Wired Earphone. XDEC (Shenzhen, est. 2009) — OEM/ODM customization, 3-5 day lead time for standard parts, free selection and sampling.
Specifications
Impedance:32Ω
Power:20mW/30mW

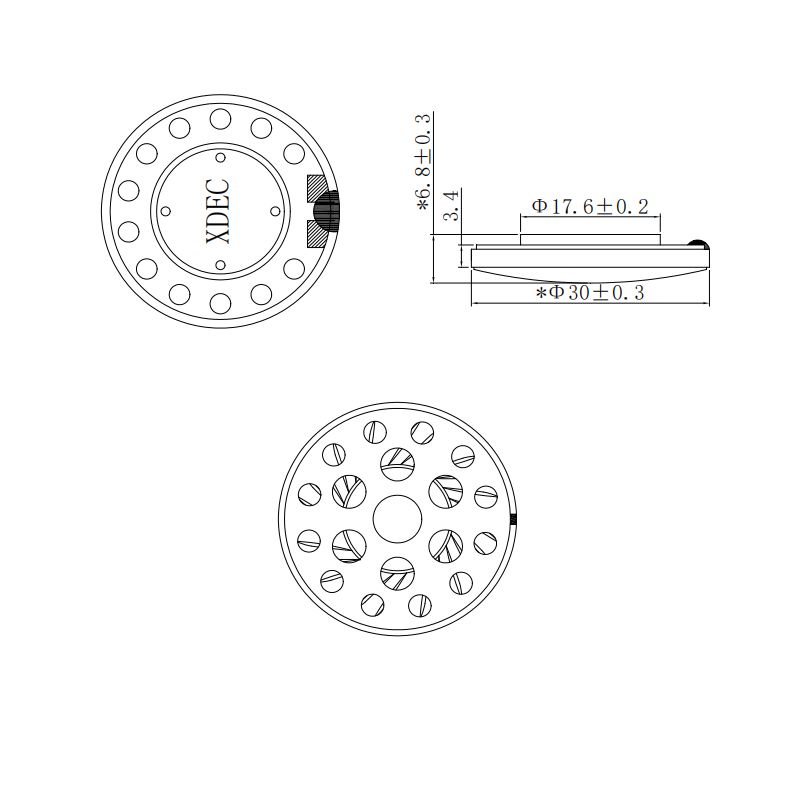

Dimensions:30×6.8H mm

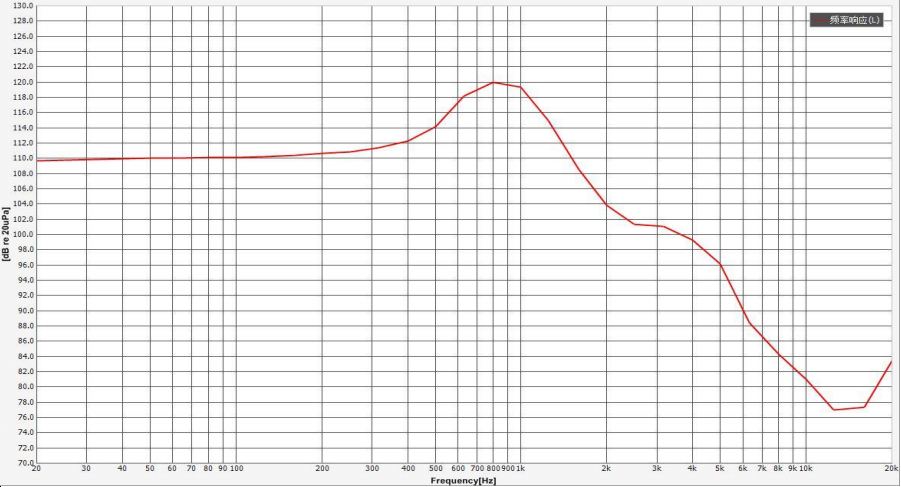

Frequency:F0~2kHz
Sensitivity:118 ±3dB
Distortion:10 % MAX
Get Datasheet & Quote
Contact
xd12@xdec.cn
0755-27739805
Manager Yuan 13528883307
Note: Datasheets are not available for direct download. Please submit an inquiry to receive them.
